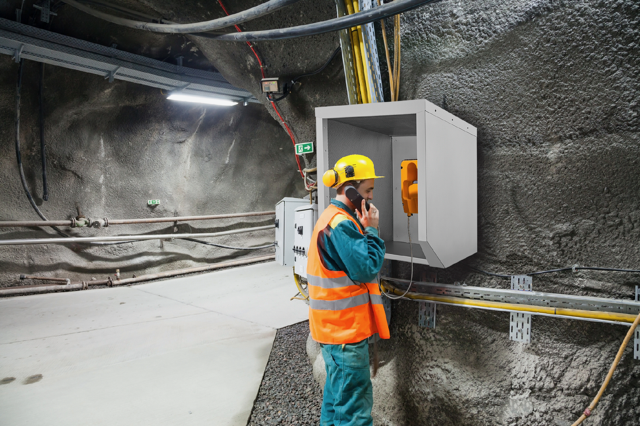

T7000 Stainless Steel Acoustic Hood

The enclosure has been designed  and engineered to extremely high structural standards while also affording a comfortable and accessible space

It is supplied fully assembled but can be flat packed, enabling easier installation on-site and potential replacement of individual panels in the future

Inside the hood's outer shell is a perforated steel lining that houses  acoustic insulation. High performance acoustic materials inside the secure wall and ceiling cavities, enhance privacy and ambient noise reduction to a maximum independently tested figure of 26.4dB

The hood is fixed to the wall via four concealed mounting points that are welded to the hood's back wall.

Cable entry slot is available through the rear cavity

Specifications

• Maximum Noise reduction 26.4 dB
• Dimensions: H839mm x W707mm x D533mm
• Weight - 55Kg
• Colour - Stainless Steel
• Outer Shell, shelf and gear plate - Stainless steel
• Acoustic Insulation - Tissue faced non hygroscopic wire cut RW3 density 60kg/m3
• Insulation Liner - Perforated stainless steel
• Packed Dimensions - On application

• Packed Weight - On application
