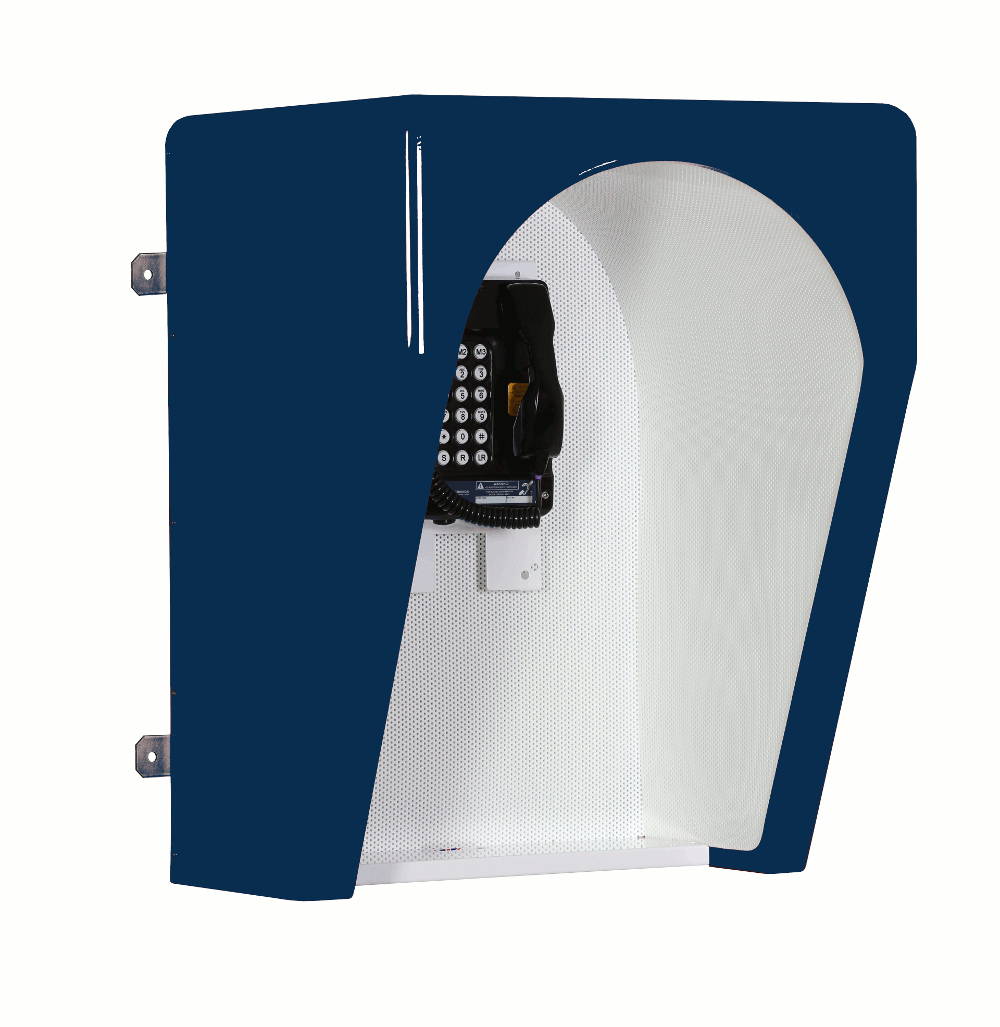

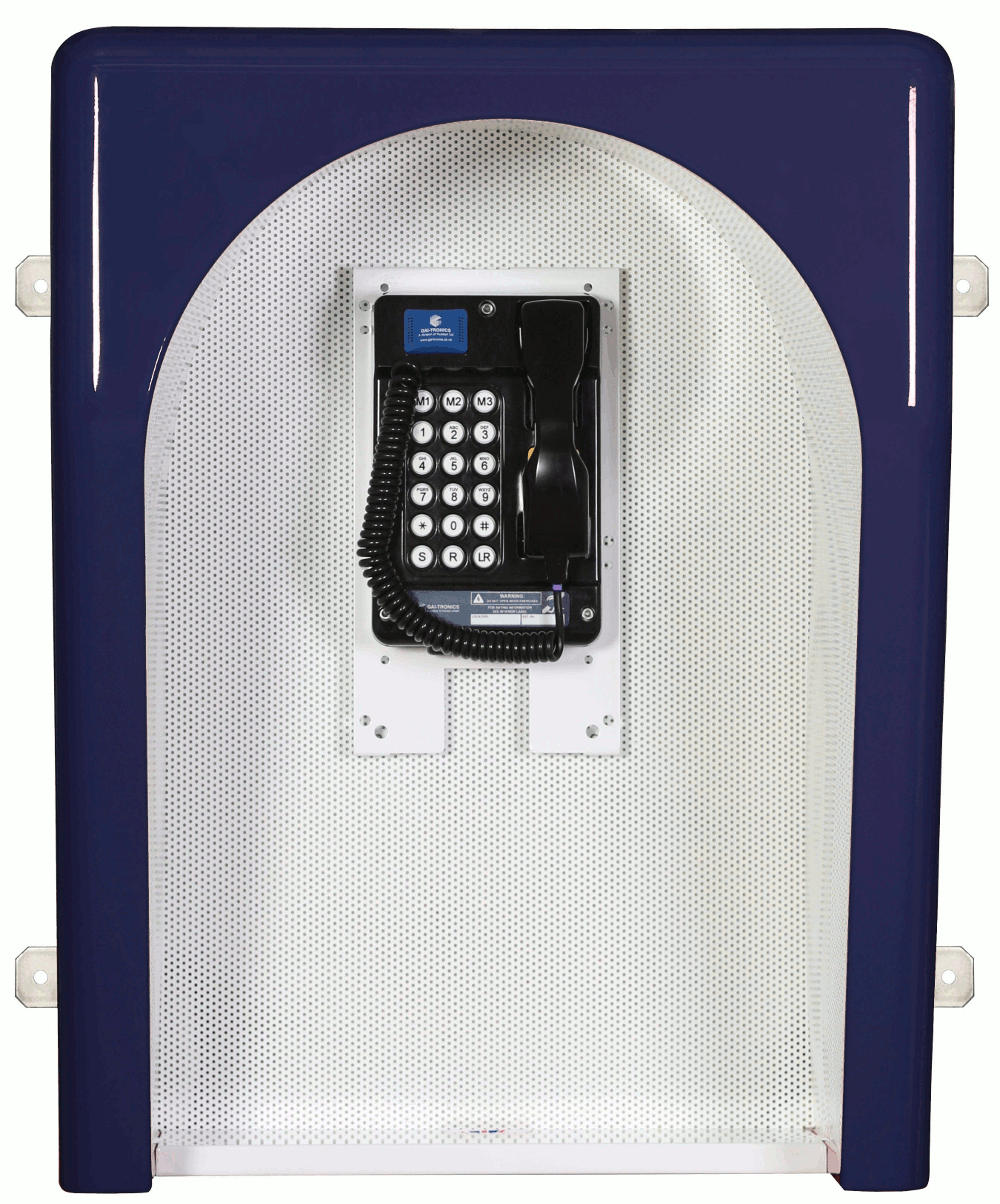

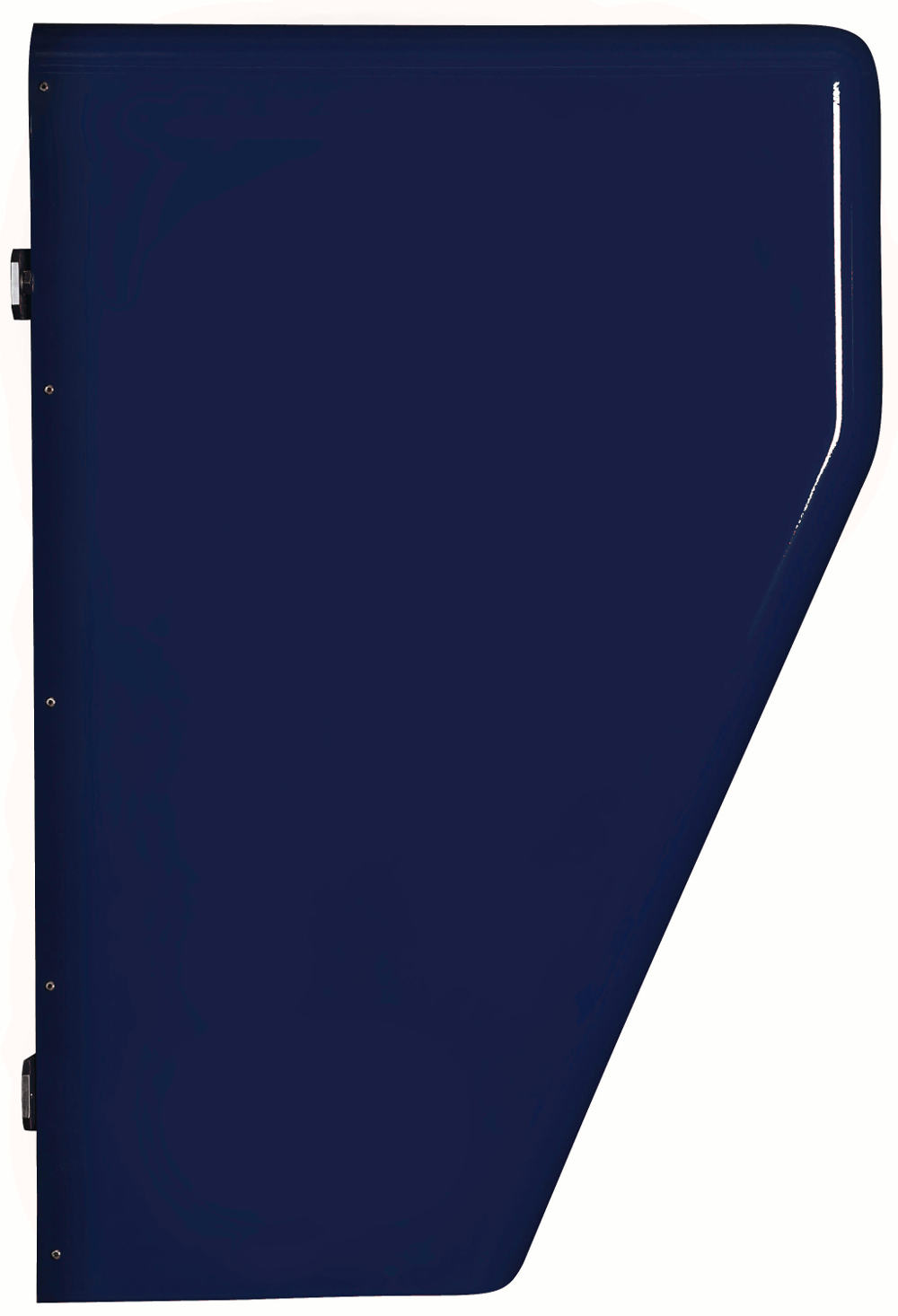

T5000 Acoustic Hood - Wall Mount

Overview

For external or internal use, the T5000 is designed to attain a high level of noise reduction up to 23.9 dB.

Thermoset Composite GRP Moulding manufactured using a certified RTM system to BS476 Part 7 Class II surface spread of flame

Inside the hood's outer shell is a perforated polypropylene lining that houses 560mm non-hygroscopic acoustic insulation.

Fitted to the inner back wall is a stainless steel apparatus plate; beneath this is a 316 stainless steel shelf (165mm deep) with a white powder coat finish and easy cable entry.

The hood is fixed to the wall via two galvanised steel brackets that are secured through the hood's back panel enabling a load of up to 60 kgs to be safely mounted.

This hood can made to be post mounted - Post available here

Specifications

• Dimensions - H920mm W700mm D610mm
• Weight - Approx 31.5Kg
• Colour - Blue (RAL 5003)  - MINIMUM ORDER QUANTITIES APPLY FOR THIS COLOUR - PLEASE ASK FOR DETAILS

• Outer Shell - GRP
• 316 Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 60mm of Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
• Insulation Liner - White Perforated Polypropylene
• Apparatus plate - 316 Grade Stainless Steel powder coated white
• Mounting Brackets - Galvanised Steel
• Boxed Dimensions - 980 x 800 x 680mm
• Boxed Weight - 37Kg
